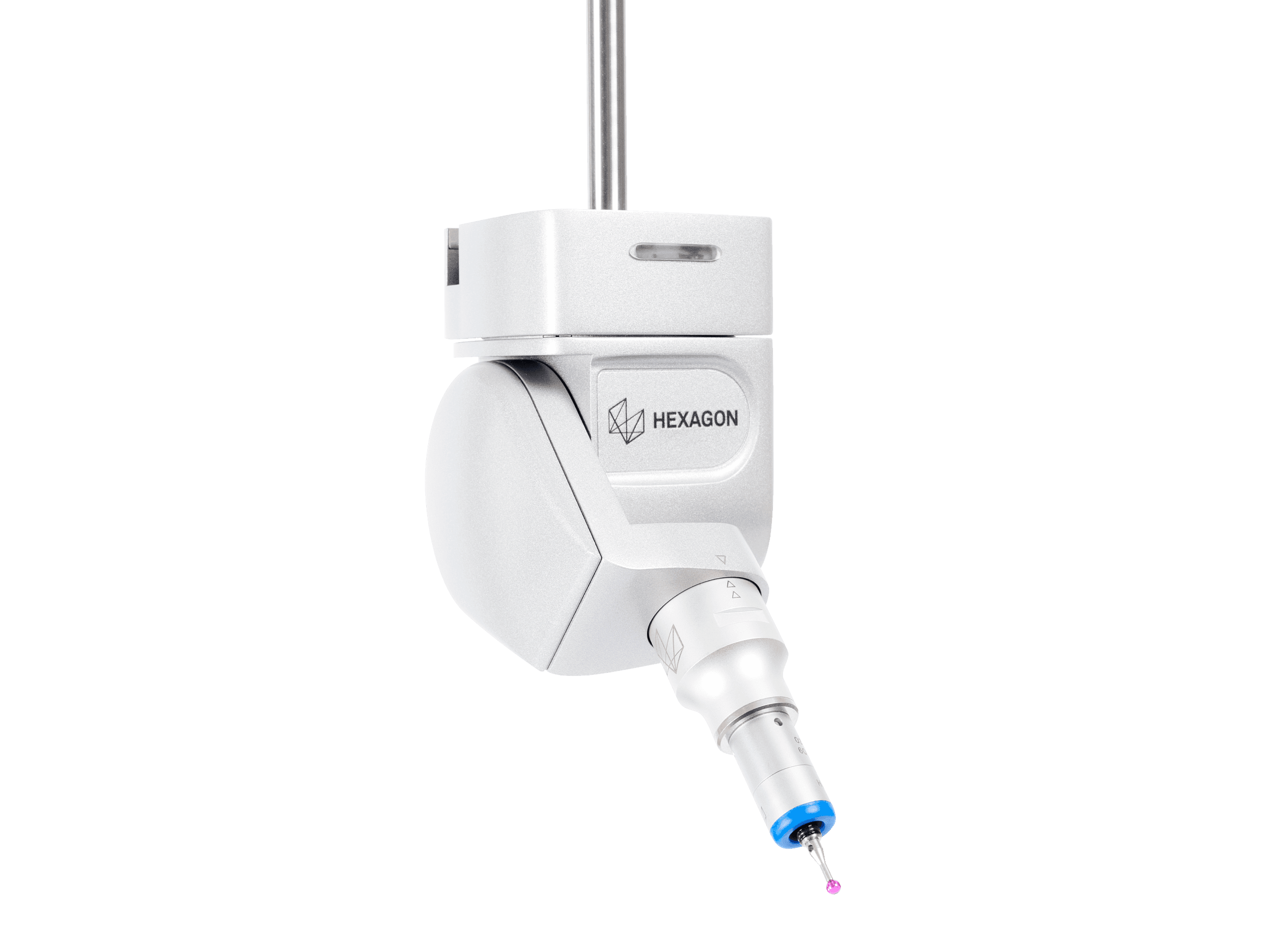

HH-A / HH-AS Automatic 7.5° Probe Heads

Fully motorized, highly accurate probe head

Sensors can be connected to the Probe Head with a kinematic joint (HH-A-T7.5 and HH-AS-T7.5) or an M8 threaded connection (HH-A-M7.5 and HH-AS-M7.5).

The Probe Heads can index in 7.5° increments and achieve 720 unique positions.

The Probe Heads feature high-speed operation and high rotational torque. Sensors can be changed either manually or automatically (with the HR-R probe changer) without requiring requalification.

There are two ways of mounting the probe head to the machine. The HH-A-T7.5 and HH-A-M7.5 are equipped with a shank or flange fitting to the machine. The HH-AS-T7.5 and HH-AS-M7.5 can be mounted directly into any machine with an 80mm ram.

Training and Resources

HH-A / HH-AS Automatic 7.5° Probe Heads Specifications

Indexing angle	A-axis angle	B-axis angle	Total number of positions
7.5°	+ 105° to - 0°	+/-180°	720
Rotation speed	Max. extension length	Probe mounting	Changer rack compatibility
90° in 2 sec.	300 mm	TKJ / M8 thread	YES

Indexing angle
7.5°
A-axis angle
+ 105° to - 0°
B-axis angle
+/-180°
Total number of positions
720
Rotation speed
90° in 2 sec.
Max. extension length
300 mm
Probe mounting
TKJ / M8 thread
Changer rack compatibility
YES
