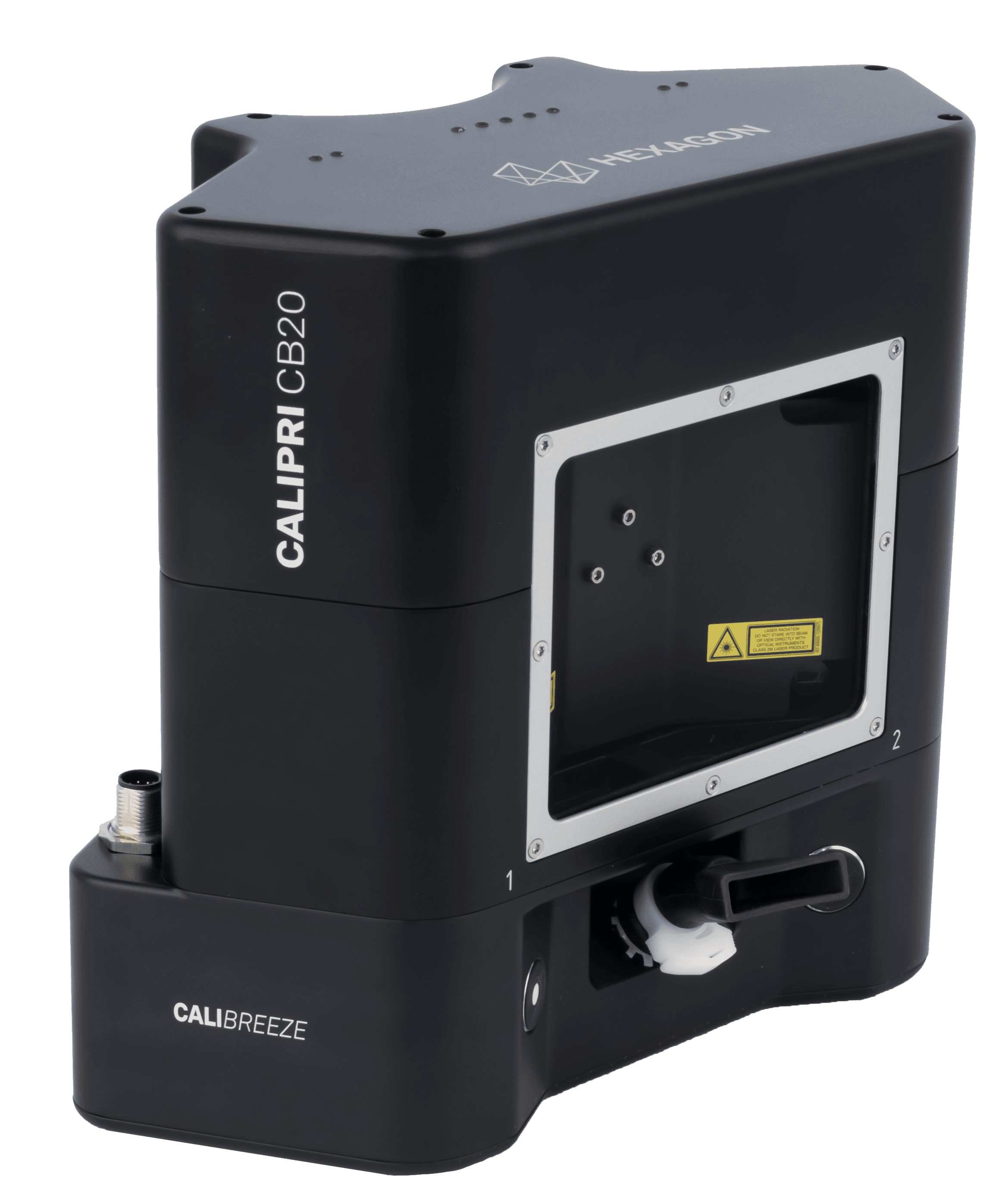

CALIPRI CB20
Fully automated inline measurement solution for automotive flush and gap inspection.
Revolutionary in-line gap measurement
Developed for 100% inline inspection, the fully automatic CALIPRI CB20 system meets the highest demands on cycle time and accuracy.
The revolutionary CaliBreeze technology integrated within the CALIPRI CB20, combined with the proven CALIPRI principle, enables optical measurements on every surface.
Surface-independent measurements, even on glass
Safety guaranteed by 100% visible laser
Cross-process evaluation strategies
Automated 100% inspection
Reliability and precision in measurement
With the disruptive innovation of our CALIPRI CB20 with patented CaliBreeze technology the automation of gap and flush measuring is on the advance.
With patented CaliBreeze technology
In order to optimize the naturally poor reflectivity of transparent and semi-transparent surfaces, the patented CaliBreeze technology produces optical contrast by applying an ultra-thin layer of condensed water on the measurement object.
01
Calibrated and temperature compensated
Our sensors are all calibrated and temperature compensated and can be – if necessary - exchanged within minutes and without adjustment.
02
Patented CaliBreeze technology
With the disruptive innovation of our CALIPRI CB20 with patented CaliBreeze technology the automation of gap and flush measuring is on the advance.
03
Clearly displayed results
Profile data and measurement results are clearly displayed on monitors to show limit exceedings with color-coded overlays.
04
Automatic data export
Data is exported automatically as CSV, XML or, on request, using your own interface.
CALIPRI CB20 Specifications
Measurement capability
Flush & gap - Automated, 100% inspection, in-line measurement, transparent gaps
Technology
Non-contact laser light section with patented CALIPRI principle
Laser class
2M
Measurement time
1.0 sec/measuring point
Operation
Robot mounted, automated, 100% inspection, robot cell and moving line
Gap size range
+/- 25 mm
Accuracy & repeatability
Accuracy < +/- 20μm,
Repeatability < +/-10µm
Data export
csv, xml, pdf, customer specific
