HP-C Vision Sensor

Vision camera measurement system for CMMs

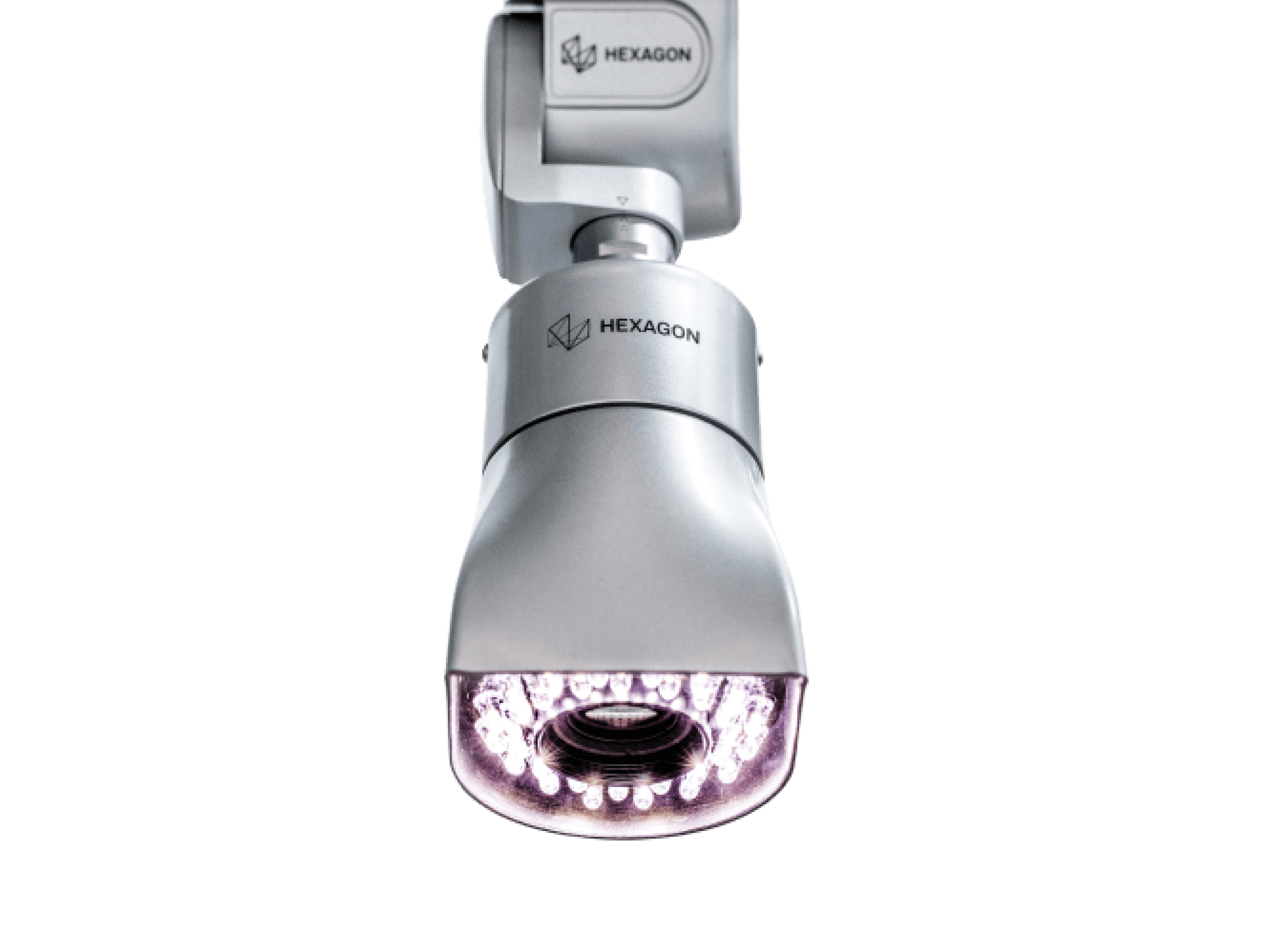

The HP-C Vision Sensor can measure small features and sensitive or easily deformed components and deliver throughput for applications where image capture is faster than probing. It is equipped with a high-resolution camera and a built-in illumination system.

Thanks to the working distance of 110 mm and two zooming options, the HP-C is an extremely flexible solution, especially when features are too small for tactile probing.

Training and Resources

HP-C Vision Sensor Specifications

Field of view	Pixel size	Frame rate	Camera type
11,7 mm x 8,7 mm (Mode 1) 5,9 mm x 4,4 mm (Mode 2)	11,4 μm (Mode 1) 5,7 μm (Mode 2)	15 fps (Mode 1) 19 fps (Mode 2)	3 Megapixel high-speed USB 2 digital colour camera
Working distance	Illumination	Probing error
110 mm	Oblique and targeted at the optical plane center 64 white LEDs split into 16 sectors and 2 rings	Probing error of the image probe PFV2D₁ 5,0 μm Probing error PF2D₁ 8,0 μm

Field of view

Pixel size

Frame rate

Camera type

11,7 mm x 8,7 mm (Mode 1)

5,9 mm x 4,4 mm (Mode 2)

11,4 μm (Mode 1)

5,7 μm (Mode 2)

15 fps (Mode 1)

19 fps (Mode 2)

3 Megapixel high-speed
USB 2 digital colour camera

Working distance

Illumination

Probing error

110 mm

Oblique and targeted at the optical plane center

64 white LEDs split into 16 sectors and 2 rings

Probing error of the image probe PFV2D₁ 5,0 μm

Probing error PF2D₁ 8,0 μm

Field of view
11,7 mm x 8,7 mm (Mode 1) 5,9 mm x 4,4 mm (Mode 2)
Pixel size
11,4 μm (Mode 1) 5,7 μm (Mode 2)
Frame rate
15 fps (Mode 1) 19 fps (Mode 2)
Camera type
3 Megapixel high-speed USB 2 digital colour camera
Working distance
110 mm
Illumination
Oblique and targeted at the optical plane center 64 white LEDs split into 16 sectors and 2 rings
Probing error
Probing error of the image probe PFV2D₁ 5,0 μm Probing error PF2D₁ 8,0 μm

₁ ISO 10360-7: 2011 “Imaging probing system”
