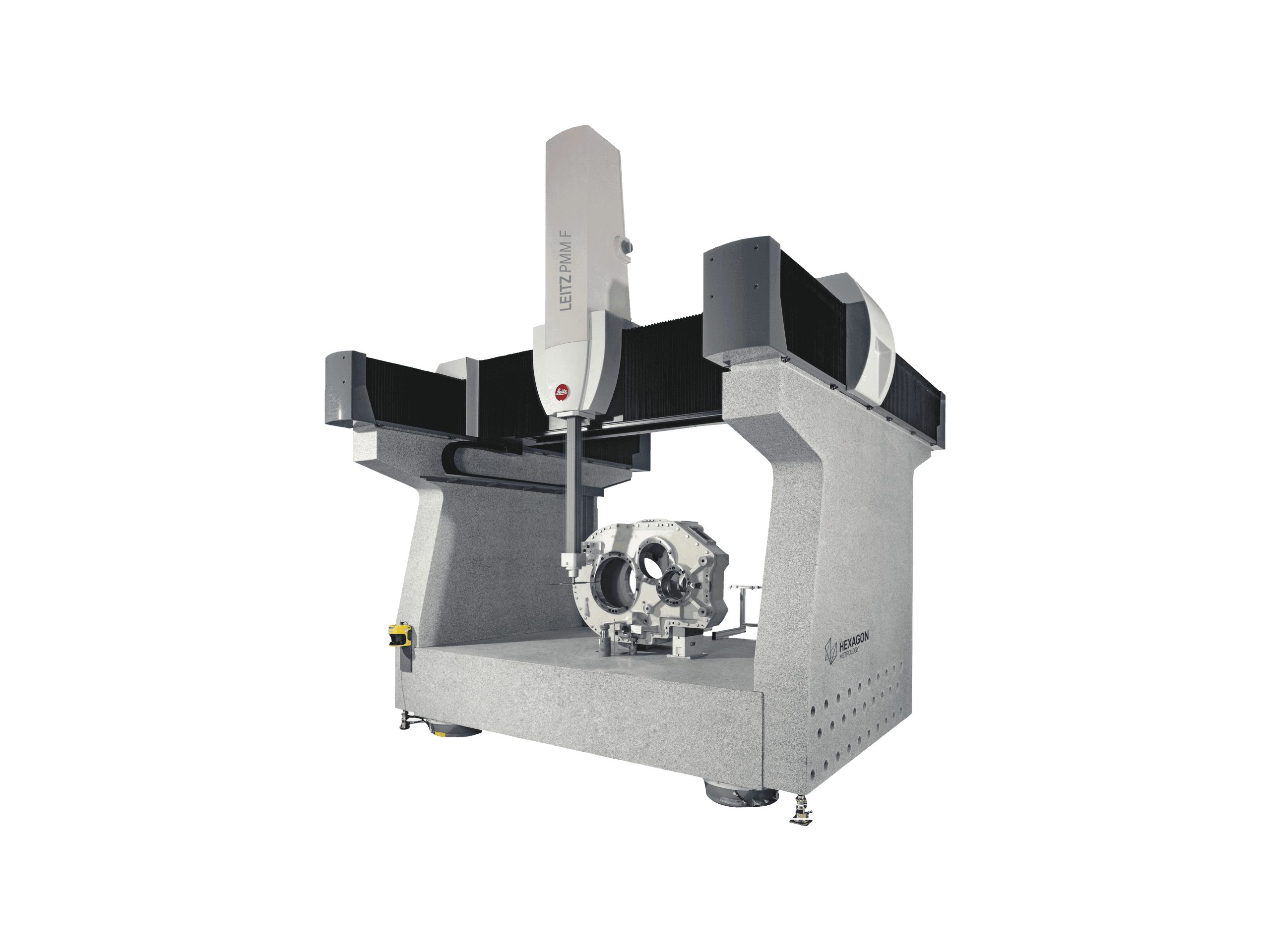

Leitz PMM-F

Accuracy meets throughput

Leitz PMM-F 30.20.10 and 30.20.16 measuring machines - where accuracy meets throughput. The PMM-F is designed to inspect medium sized components and gears not only with maximum accuracy, but with a high throughput as well. The spindle drive design combined with an overhead structure with minimized mass allows measuring velocities previously unthinkable for measuring machines of this size.

Training and Resources

Leitz PMM-F Specifications

Available Size (X, Y, Z)	Accuracy	Probe type compatibility	Automation ready
30.20.10 / 30.20.16	From 1.7 + L / 400, (E0/E150), 1.0(R0)₁) [18-22 °C] From 1.7 + L / 300, (E0/E150), 1.0(R0)₁) [22-24 °C]	Scanning probe Contact probe (roughness sensor) Non-contact probe (optical sensor)	NO
Temperature specification
18 - 22 °C 22 - 24 °C

Available Size (X, Y, Z)

Accuracy

Probe type compatibility

Automation ready

30.20.10 / 30.20.16

From 1.7 + L / 400, (E0/E150), 1.0(R0)₁) [18-22 °C]

From 1.7 + L / 300, (E0/E150), 1.0(R0)₁) [22-24 °C]

Scanning probe

Contact probe (roughness sensor)

Non-contact probe (optical sensor)

Temperature specification

18 - 22 °C

22 - 24 °C

Available Size (X, Y, Z)
30.20.10 / 30.20.16
Accuracy
From 1.7 + L / 400, (E0/E150), 1.0(R0)₁) [18-22 °C] From 1.7 + L / 300, (E0/E150), 1.0(R0)₁) [22-24 °C]
Probe type compatibility
Scanning probe Contact probe (roughness sensor) Non-contact probe (optical sensor)
Automation ready
NO
Temperature specification
18 - 22 °C 22 - 24 °C

₁ E0, E150 and R0 are valid for a length gauge with an uncertainty of calibration of ≤ 0.02 + 0.12 x L/1000 and a CTE between 8 x 10-6/K and 13 x 10-6/K. The availability of suitable length standards for measuring lengths of more than 1000 mm must be clarified by mutual agreement between the user and the manufacturer
