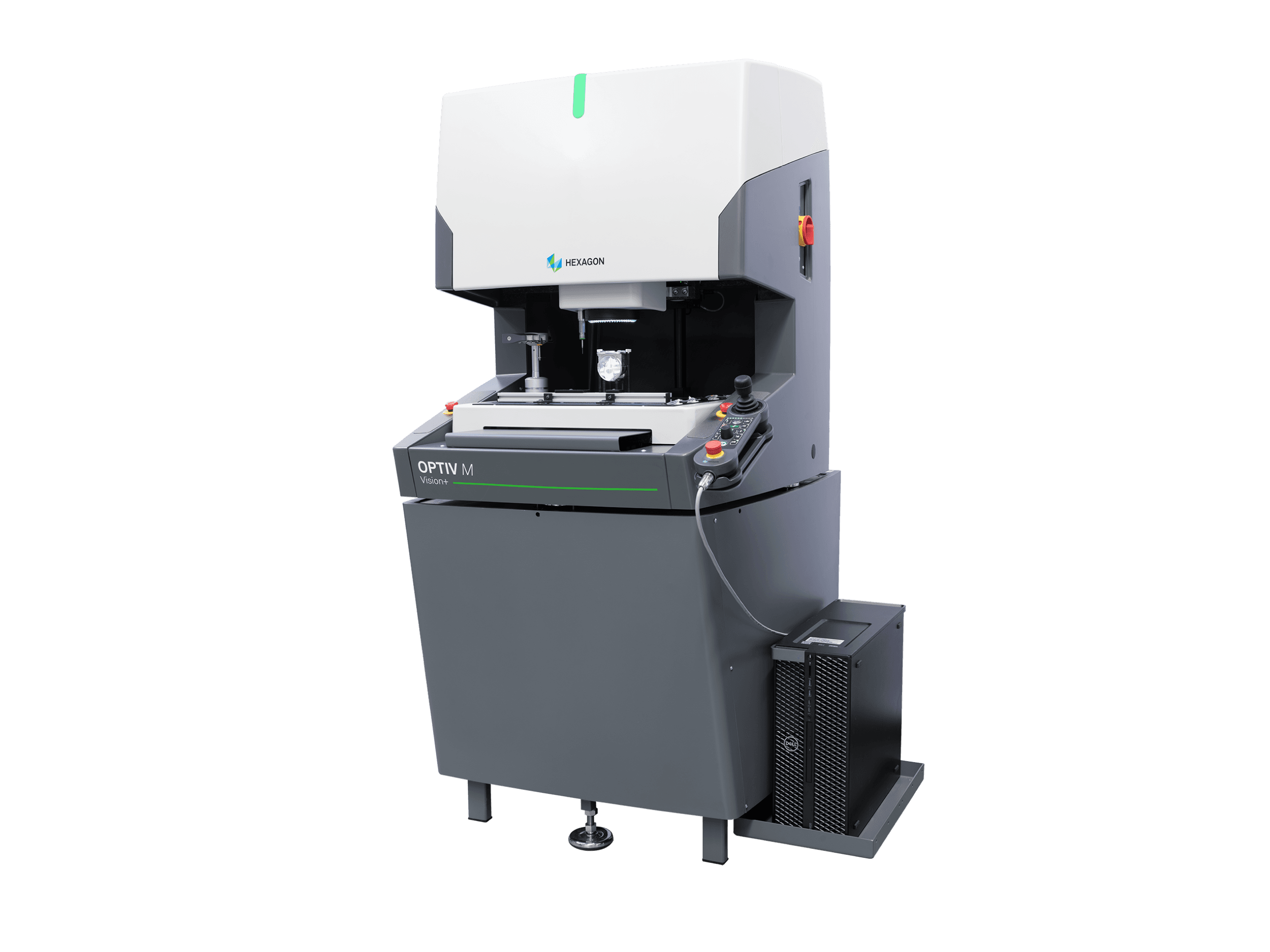

OPTIV M Vision+

OPTIV M Vision+ provides an all-in-one solution for the multisensor measurement of geometric size features on precision parts.

harware-info-image

The performance standard for general-purpose 3D multisensor measurements

  • All-in-one metrology solution – camera sensor + touch-trigger probe + CNC rotary table allow for a flexibly adaptable multisensor performance.
  • Future-ready modularity allows for easy in-field upgrade of the base system.
    ISO 10360 compliant 3D measurement performance with high accuracy – optical and tactile.
  • Effortless smart manufacturing integration of OPTIV M Vision+ due to standardized automation interface and seamless integration with Hexagon’s IoT technologies for remote asset and environment monitoring.
  • Intuitive operability of OPTIV M Vision+ through a simplified operator interface.
  • Future-proof investment fully backed up by Hexagon’s global service and support network.

OPTIV M Vision+ Specifications

Available Size (X, Y, Z)

3.2.2 / 4.4.3 / 6.6.4

Accuracy

From 1.9 + L / 250) μm, E0,MPE₁

Probe type compatibility

Vision sensor​

Touch-trigger probe (optional)

Automation ready

YES

Temperature specification

18-22 °C

Overall Dimensions (mm)

Model

LX

LY

LZ

3.2.2

860

1025

1700

4.4.3

948

1310

2277

6.6.4

1416

1734

2530

₁ L = measuring length [mm]. Volumetric length measuring error according to ISO 10360-2:2009 at 18-22 °C
