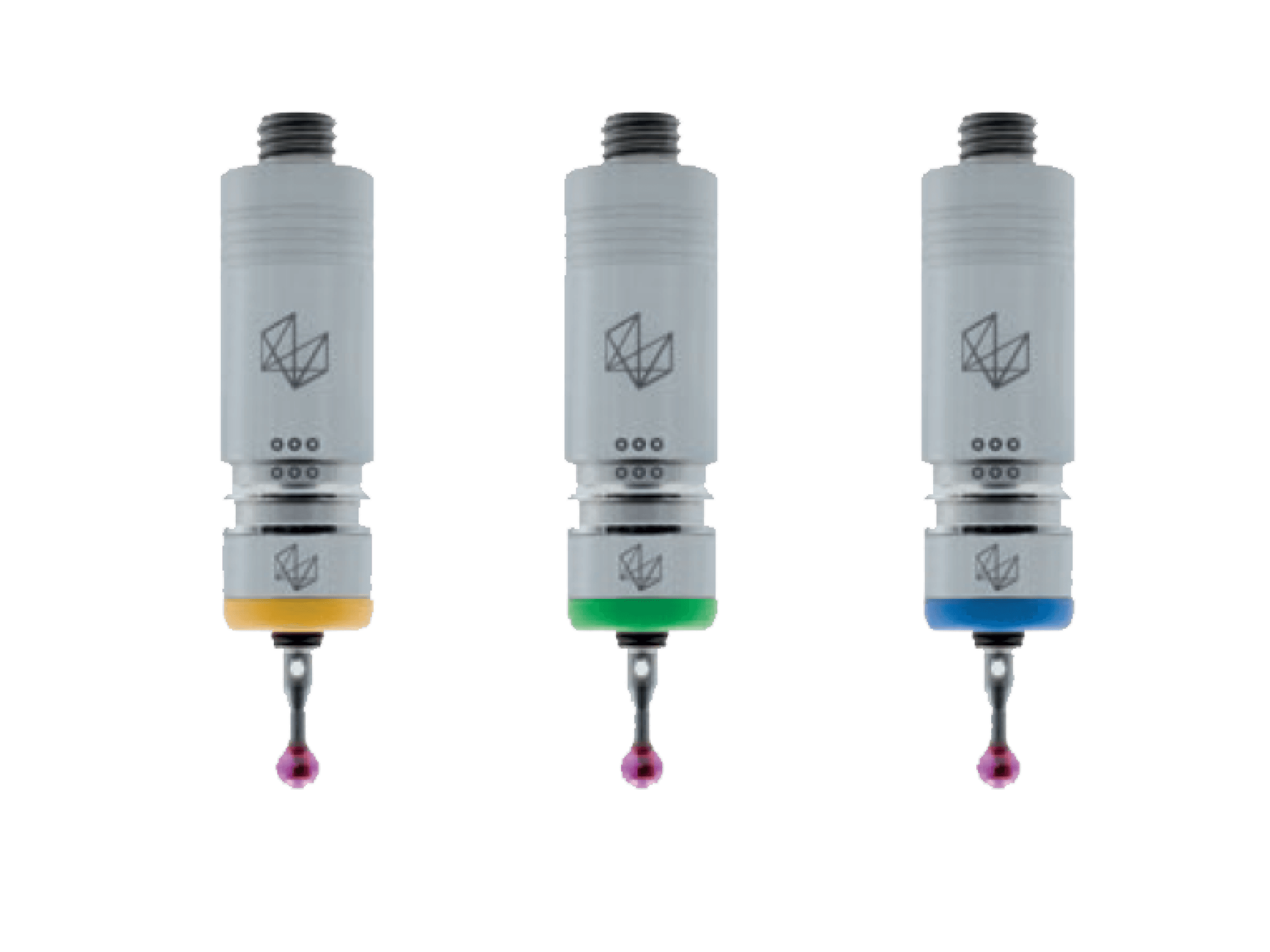

HP-THDe touch trigger probe

Highly versatile touch trigger probe for outstanding measuring performance and functionality

The HP-THDe touch trigger probe has been designed to take advantage of cutting-edge technology and deliver highly accurate touch trigger probing with styli builds of up to 100 mm. It offers high-precision repeatability and low 3D form error thanks to a highly innovative opto-mechanical design capable of detecting nanometric movements in the X, Y and Z directions.

Highly versatile touch trigger probe for outstanding measuring performance and functionality

Training and Resources

HP-THDe touch trigger probe Specifications

Mounting	Probing direction	Stylus mounting	Max. stylus length
M8 with active 1 wire connection	6 ways +/-X, +/-Y and +/-Z	M2 thread	75 mm (100 mm carbon fibre)
Trigger force	Pre-travel variance	Repeatability (1D, 2sigma)
From 0.02 N (XY plane) From 0.8 N (Z plane)	+/- 0.4 μm₁	From 0.3 μm

Mounting

Probing direction

Stylus mounting

Max. stylus length

M8 with active 1 wire connection

6 ways +/-X, +/-Y and +/-Z

M2 thread

75 mm (100 mm carbon fibre)

Trigger force

Pre-travel variance

Repeatability (1D, 2sigma)

From 0.02 N (XY plane)

From 0.8 N (Z plane)

+/- 0.4 μm₁

From 0.3 μm

Mounting
M8 with active 1 wire connection
Probing direction
6 ways +/-X, +/-Y and +/-Z
Stylus mounting
M2 thread
Max. stylus length
75 mm (100 mm carbon fibre)
Trigger force
From 0.02 N (XY plane) From 0.8 N (Z plane)
Pre-travel variance
+/- 0.4 μm₁
Repeatability (1D, 2sigma)
From 0.3 μm

₁ Test conditions: Straight stylus, Touch speed 5 mm/sec.
