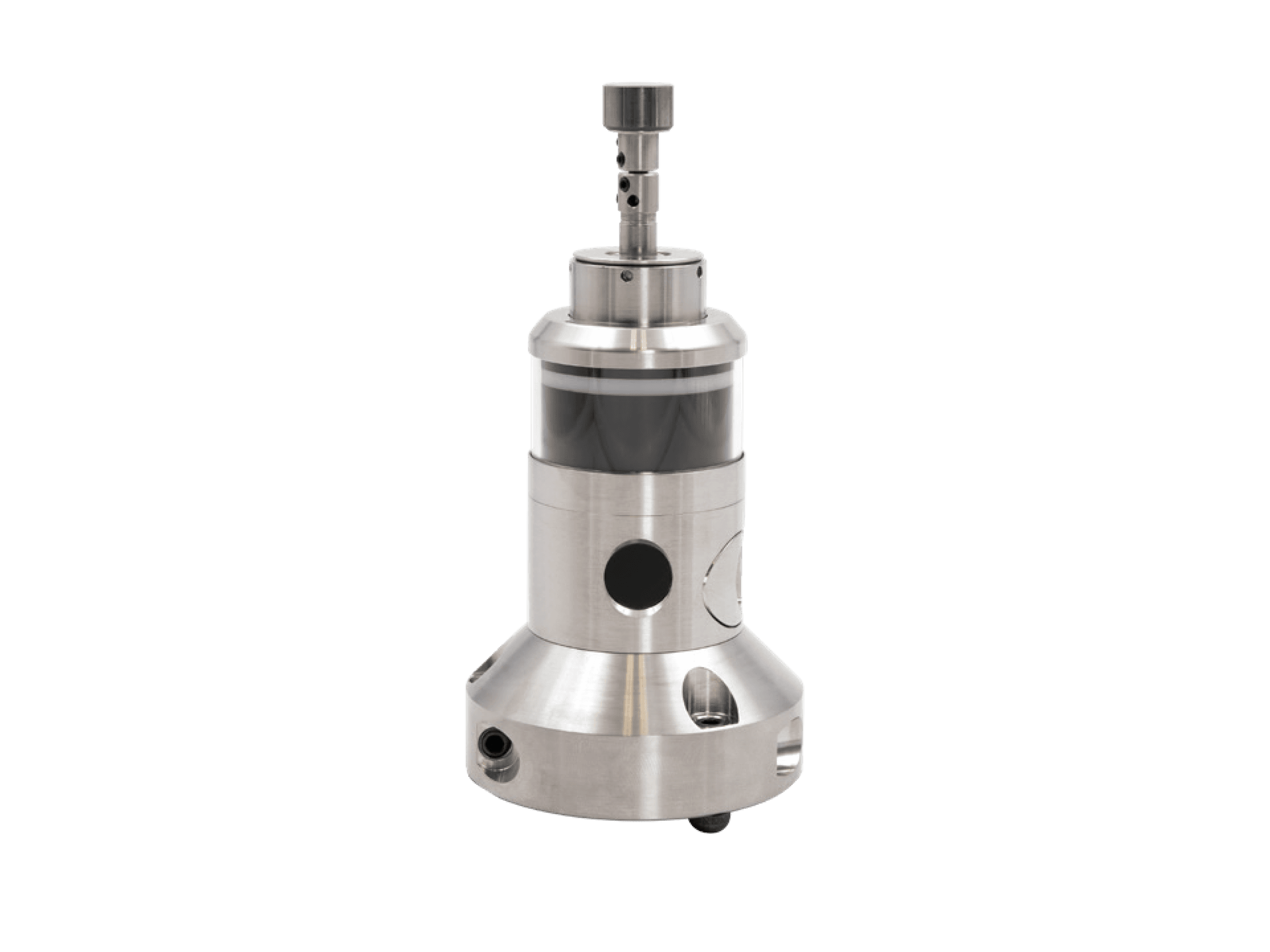

Radio Tool Setter TS-R-400
The TS-R-400 radio tool setter measuring system efficiently determines tool geometries such as tool length and radius on the machine tool.
Flexible tool setter with unique handling and mounting options
With the TS-R-400, measurement can be carried out both statically and dynamically. The measuring signals from the tool measuring system are transmitted via radio transmission over long distances to the receiver, free from interference. This ensures a streamlined process.
The tool-setter was designed for ideal use in a modern production environment. Equipped with an all-round illumination ring, unique handling, and a display on the probe, configuration changes and status checks of the system have never been easier. Additionally, equipped with a separate shank, the TS-R-400 can even be converted to a regular 3D touch probe.
Radio Tool Setter TS-R-400 Specifications
Accuracy
max. 1 μm (2 Sigma) at 254 mm/min probing feed rate
Triggering force
X/Y = 0,3-1,4 N (factory setting = 1 N)
Z = 2,5-12,5 N (factory setting = 8,5 N)
Temperature range
Operation: 10°C -50°C,
Storage: -20°C -70°C
Power supply
2x battery (3,6 V / ½ AA)
Protection class
IP68: EN60529
Signal transmission
Radio-wave
