HH-A / HH-AS Automatic 5° Probe Heads

The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.

harware-info-image

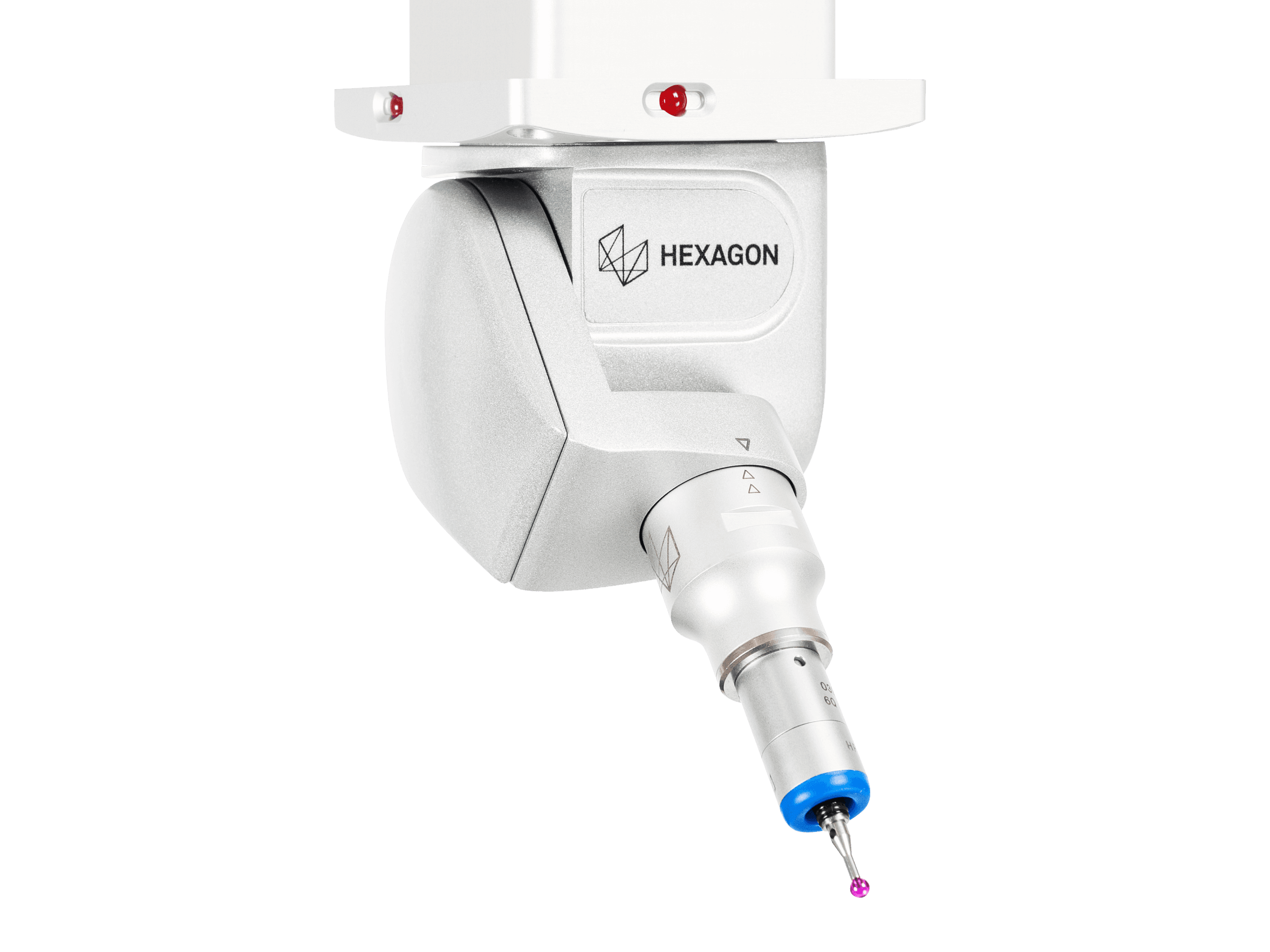

Fully motorized, highly accurate probe head

Sensors can be connected to the Probe Head with a kinematic joint (HH-A-T5 and HH-AS-T5) or an M8 threaded connection (HH-A-M5 and HH-AS-M5). The Probe Heads can index in 5° increments and achieve 3024 unique positions. The Probe Heads feature high-speed operation and high rotational torque. Sensors can be changed either manually or automatically (with the HR-R probe changer) without requiring requalification.

There are two ways of mounting the probe head to the machine. The HH-A-T5 and HH-A-M5 are equipped with a shank or flange fitting to the machine. The HH-AS-T5 and HH-AS-M5 can be mounted directly into any machine with an 80mm or 65mm ram.

Sensors can be connected to the Probe Head with a kinematic joint (HH-A-T5 and HH-AS-T5) or an M8 threaded connection (HH-A-M5 and HH-AS-M5). The Probe Heads can index in 5° increments and achieve 3024 unique positions. The Probe Heads feature high-speed operation and high rotational torque. Sensors can be changed either manually or automatically (with the HR-R probe changer) without requiring requalification.

There are two ways of mounting the probe head to the machine. The HH-A-T5 and HH-A-M5 are equipped with a shank or flange fitting to the machine. The HH-AS-T5 and HH-AS-M5 can be mounted directly into any machine with an 80mm or 65mm ram.

HH-A / HH-AS Automatic 5° Probe Heads Specifications

Indexing angle

A-axis angle

+ 90° to -115°

B-axis angle

+/-180°

Total number of positions

3024

Rotation speed

90° in 2 sec.

Max. extension length

300 mm

Probe mounting

TKJ / M8 thread

Changer rack compatibility

YES
