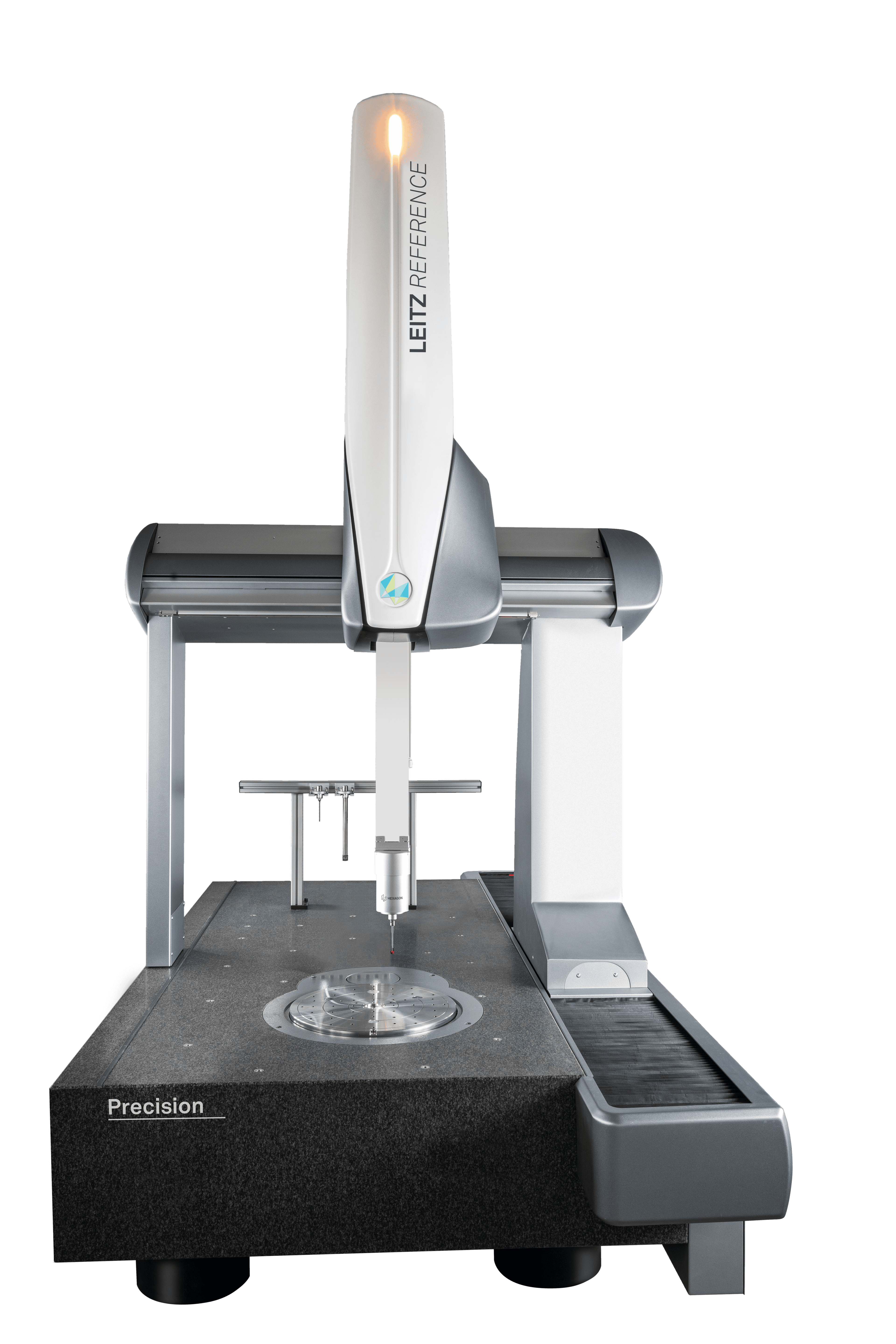

Leitz Reference Precision

Measure tight tolerance size and form features

Leitz Reference Precision combines high accuracy and precision with outstanding high-speed scanning capabilities.

The model’s fixed scanning head ensures high, repeatable accuracy even with extra-long probe extensions and heavy styli clusters. This enables users to use high-accuracy scanning across a broader range of measurement applications, including inspecting features deep within parts. In addition, a modular sensor and styli changer rack enables the selection of the best styli options for each application.

Training and Resources

Leitz Reference Precision Specifications

Available Size (X, Y, Z)₁	Accuracy₂	Probe type compatibility	Automation ready
05.04.03 / 07.07.05 / 10.07.06 / 12.09.07 / 15.09.07 / 20.09.07 / 15.12.09 / 22.12.09 / 30.12.09 / 40.12.09	From 1.1μm + L/350, MPE(E0/E150)₃) [18-24 °C] From 0.7μm + L/400, MPE(E0)₃) [19-21 °C] From 0.7μm + L/400, MPE(E150)₃) [19-21 °C] From 1.2μm + L/250, MPE(E0/E150)₄) [15-30 °C]	Touch-trigger probe Scanning probe Non-contact probe (optical sensor) Contact probe (roughness sensor) Laser scanner probe	YES
Temperature specification
18-24 °C (standard configuration) 19-21 °C (Accuracy ++ model ) 15-30 °C (XT, option)

Available Size (X, Y, Z)₁

Accuracy₂

Probe type compatibility

Automation ready

05.04.03 / 07.07.05 / 10.07.06 / 12.09.07 /

15.09.07 / 20.09.07 / 15.12.09 / 22.12.09 /

30.12.09 / 40.12.09

From 1.1μm + L/350, MPE(E0/E150)₃) [18-24 °C]

From 0.7μm + L/400, MPE(E0)₃) [19-21 °C]

From 0.7μm + L/400, MPE(E150)₃) [19-21 °C]

From 1.2μm + L/250, MPE(E0/E150)₄) [15-30 °C]

Touch-trigger probe

Scanning probe

Non-contact probe (optical sensor)

Contact probe (roughness sensor)

Laser scanner probe

YES

Temperature specification

18-24 °C (standard configuration)

19-21 °C (Accuracy ++ model )

15-30 °C (XT, option)

Available Size (X, Y, Z)₁
05.04.03 / 07.07.05 / 10.07.06 / 12.09.07 / 15.09.07 / 20.09.07 / 15.12.09 / 22.12.09 / 30.12.09 / 40.12.09
Accuracy₂
From 1.1μm + L/350, MPE(E0/E150)₃) [18-24 °C] From 0.7μm + L/400, MPE(E0)₃) [19-21 °C] From 0.7μm + L/400, MPE(E150)₃) [19-21 °C] From 1.2μm + L/250, MPE(E0/E150)₄) [15-30 °C]
Probe type compatibility
Touch-trigger probe Scanning probe Non-contact probe (optical sensor) Contact probe (roughness sensor) Laser scanner probe
Automation ready
YES
Temperature specification
18-24 °C (standard configuration) 19-21 °C (Accuracy ++ model ) 15-30 °C (XT, option)

₁ Sizes are expressed in dm. I.e., 07.07.05 means X = 700 mm; Y = 700 mm; Z = 500 mm

₂ According to ISO 10360-2 (2009)

₃ MPE(E0/E150) specifications are to be formally understood as MPE(E0E150)* for the case where non-normal CTE material calibrated test lengths are used. Length unit measure (L) in mm

₄ XT option only
