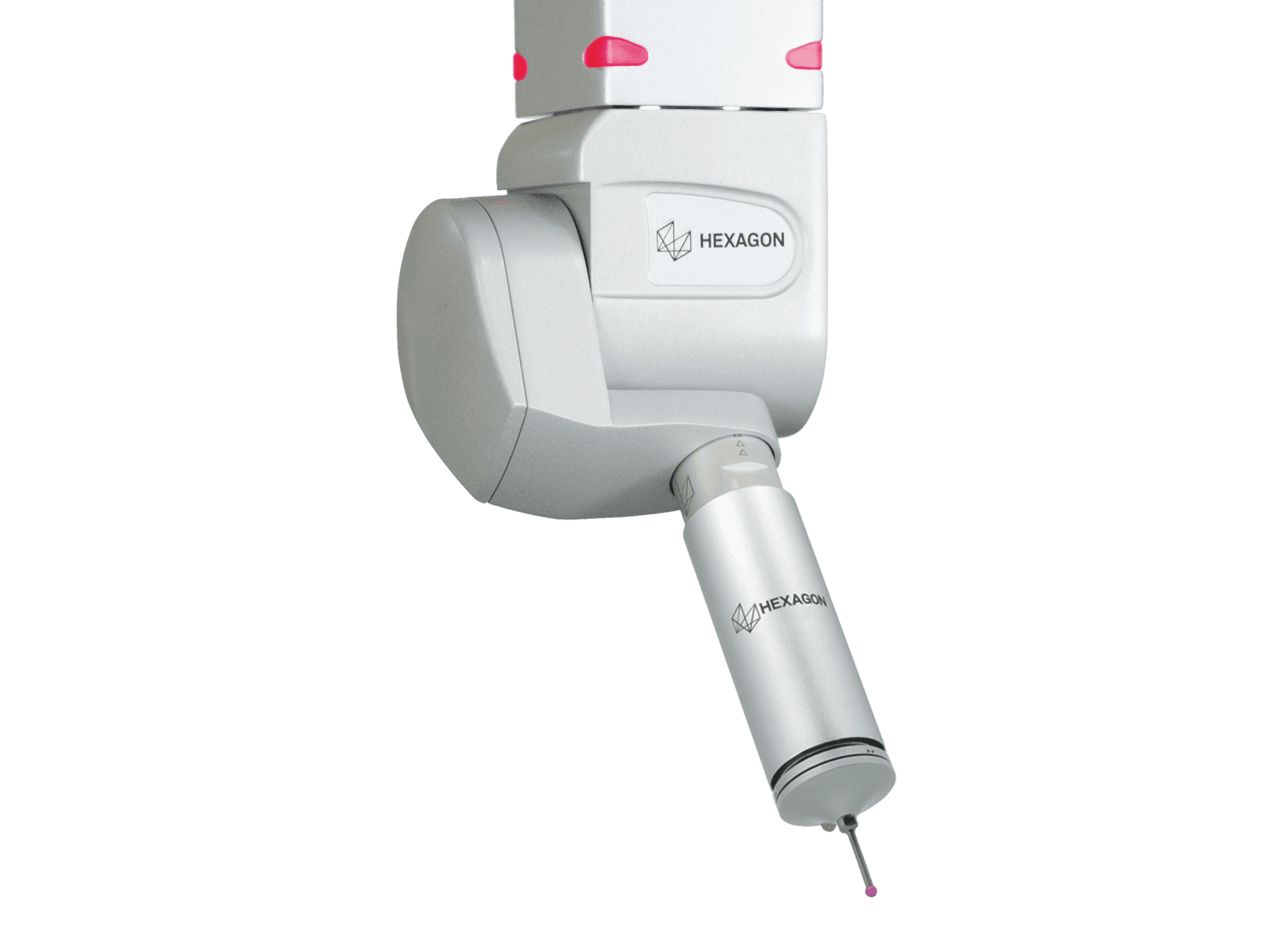

HP-S-X1 Scanning Probes

Compact scanning probes from Hexagon Manufacturing Intelligence

The HP-S-X1 scanning probes offer the accuracy characteristics of fixed heads but can also be fitted to HH-A and HH-AS automatic indexable heads being capable to measure both in point to point and in continuous scanning mode.

The HP-S-X1 Sensors are available in three types. The HP-S-X1S and HP-S-X1H can be fitted to Hexagon Manufacturing Intelligence Probe Heads HH-A and HH-AS. The HP-S-X1C in mounted directly to the measuring machine.

Training and Resources

HP-S-X1 Scanning Probes Specifications

Probe type	Probe mounting	Stylus holder thread	Max. stylus length
Analogue	TKJ (kinematic joint) / centre mounted	M3	Axial: Up to 225 mm Lateral: Up to 100 mm
Max. stylus weight	Measurement range	Resolution	Linear stiffness
33g (incl. stylus clamping)	+/- 2 mm in all axes	< 0.1 μm	1.2 N/mm

Probe type

Probe mounting

Stylus holder thread

Max. stylus length

Analogue

TKJ (kinematic joint) / centre mounted

Axial: Up to 225 mm

Lateral: Up to 100 mm

Max. stylus weight

Measurement range

Resolution

Linear stiffness

33g (incl. stylus clamping)

+/- 2 mm in all axes

< 0.1 μm

1.2 N/mm

Probe type
Analogue
Probe mounting
TKJ (kinematic joint) / centre mounted
Stylus holder thread
M3
Max. stylus length
Axial: Up to 225 mm Lateral: Up to 100 mm
Max. stylus weight
33g (incl. stylus clamping)
Measurement range
+/- 2 mm in all axes
Resolution
< 0.1 μm
Linear stiffness
1.2 N/mm
