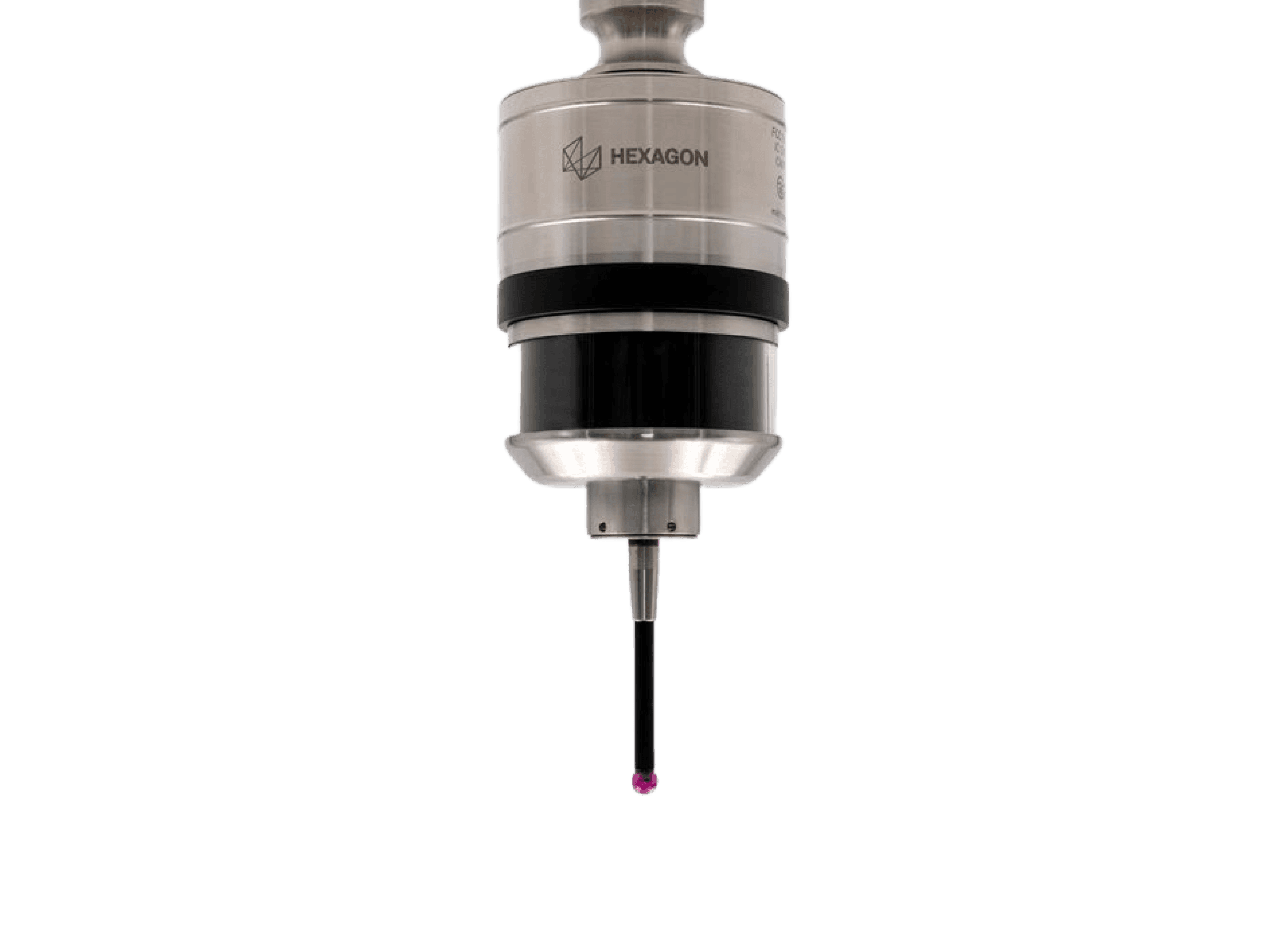

Radio High Accuracy Probe m&h RWP20.50-HPP

RWP20.50-HPP deploys laser-triangulation inside the measurement unit for high repeatability, low pre-travel variation and low 3D form error.

Skip to

Support

Specifications

Hexagon’s most accurate touch probe for machine tools

Many applications, for example, the measurement of freeform shapes or checking machine kinematics, need extremely precise measurement results in 2D and 3D. These are best achieved by deploying Hexagon’s patent-pending laser-triangulation technology inside the RWP20.50-HPP radio-wave touch probe.

The RWP20.50 modular probing system can be used for various applications and easily modified by simply screwing in various measuring units. Extensions and cross-probes can also be used.

Radio High Accuracy Probe m&h RWP20.50-HPP Specifications

Accuracy

Max. 0.25 μm (2 Sigma) with 50 mm stylus and 254 mm/min probing feed rate

Triggering force

XY = 0.1 N (typical value),

Z = 2.5 N (typical value)

Temperature range

Operation: 10°- 50°C

Storage: 5°- 70°C

Power supply

1 x 9 V battery block, 6LR61

Lithium: 1200 mAh,

Alkaline: 550 mAh

Protection class

IP68: EN60529

Signal transmission

Radio-wave

HxGN NC Measure (Software)

Intuitive, versatile, and user-friendly, simplify inspection processes for a range of parts on the machine tool.

m&H NC Gage (Software)

The simple use, and innovative “Teach-in” process allow a user to create gauging programs without previous programming knowledge.

3D Form Inspect Jobmaster (Software)

3D Form Inspect increases your productivity, reduces production costs and guarantees high flexibility – together this is Connected Probing.

3D Form Inspect (Software)

This software enables quick measuring and logging of important geometries and shapes on all sides and axes directly on the machine tool.

Radio Receiver m&h RC-R-100

The multifunctional radio receiver for the complete machine tool multi-sensor portfolio.
