RWP20.50-G-UTP Ultrasonic Measurement Solution

Complete solution for wall thickness measurement directly on the machine tool

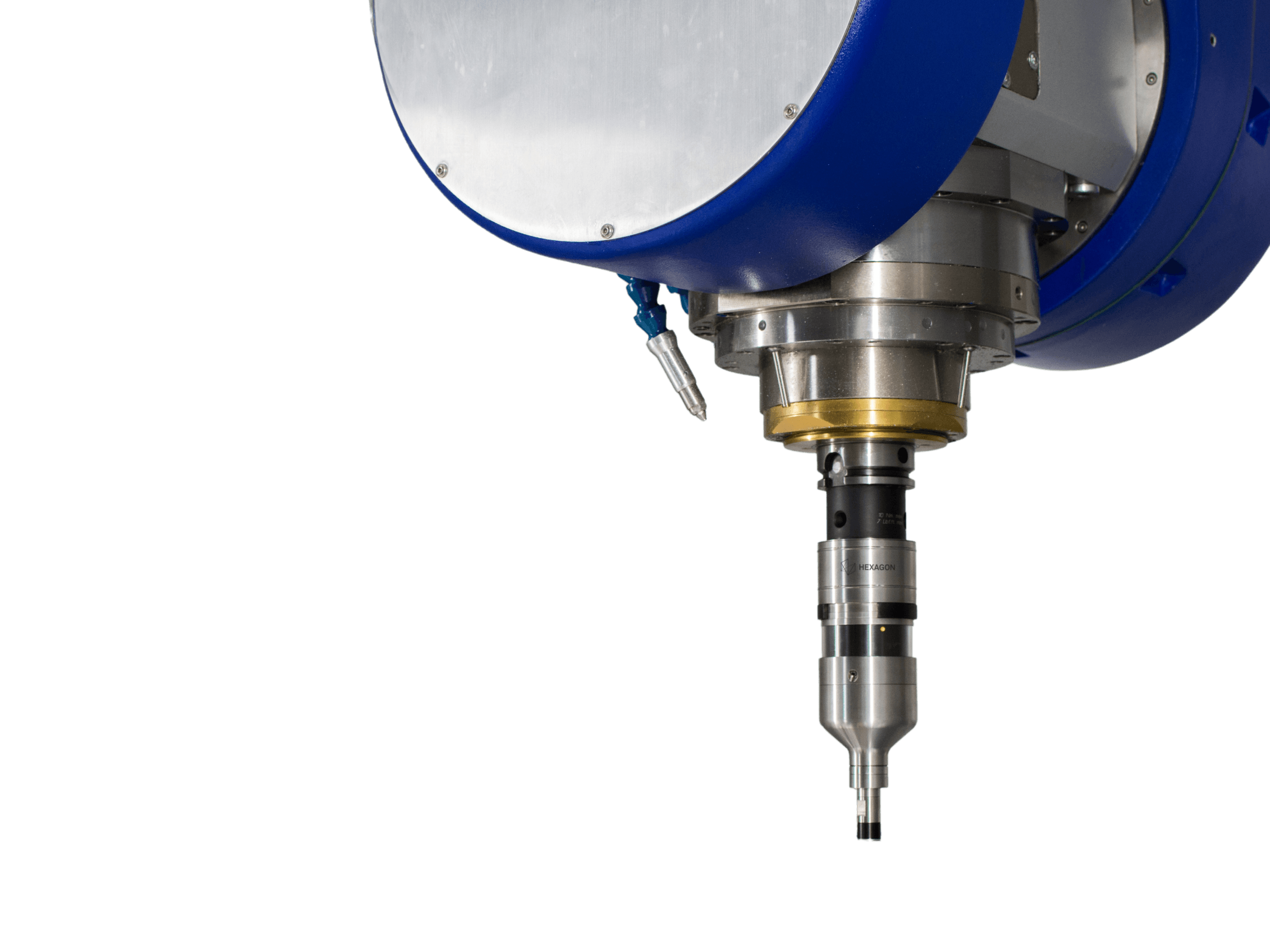

The RWP20.50-G-UTP ultrasonic touch probe makes it simple to automatically measure the thickness of the walls of larger parts directly on the machine tool, resulting in significantly faster inspections and enhanced data capture.

Training and Resources

RWP20.50-G-UTP Ultrasonic Measurement Solution Specifications

Accuracy	Measuring range	Temperature range	Power supply
+/- 10 μm	Dry: 0,7 - 9mm Wet: 0,7 - 9mm or 1,5 - 30mm	Operation: 10° – 50°C Storage: 5° – 70°C	1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh
Protection class	Signal transmission
IP68: EN60529	Radio Wave

Accuracy

Measuring range

Temperature range

Power supply

+/- 10 μm

Dry: 0,7 - 9mm

Wet: 0,7 - 9mm or 1,5 - 30mm

Operation: 10° – 50°C

Storage: 5° – 70°C

1 x 9 V battery block, 6LR61

Lithium: 1200 mAh,

Alkaline: 550 mAh

Protection class

Signal transmission

IP68: EN60529

Radio Wave

Accuracy
+/- 10 μm
Measuring range
Dry: 0,7 - 9mm Wet: 0,7 - 9mm or 1,5 - 30mm
Temperature range
Operation: 10° – 50°C Storage: 5° – 70°C
Power supply
1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh
Protection class
IP68: EN60529
Signal transmission
Radio Wave
