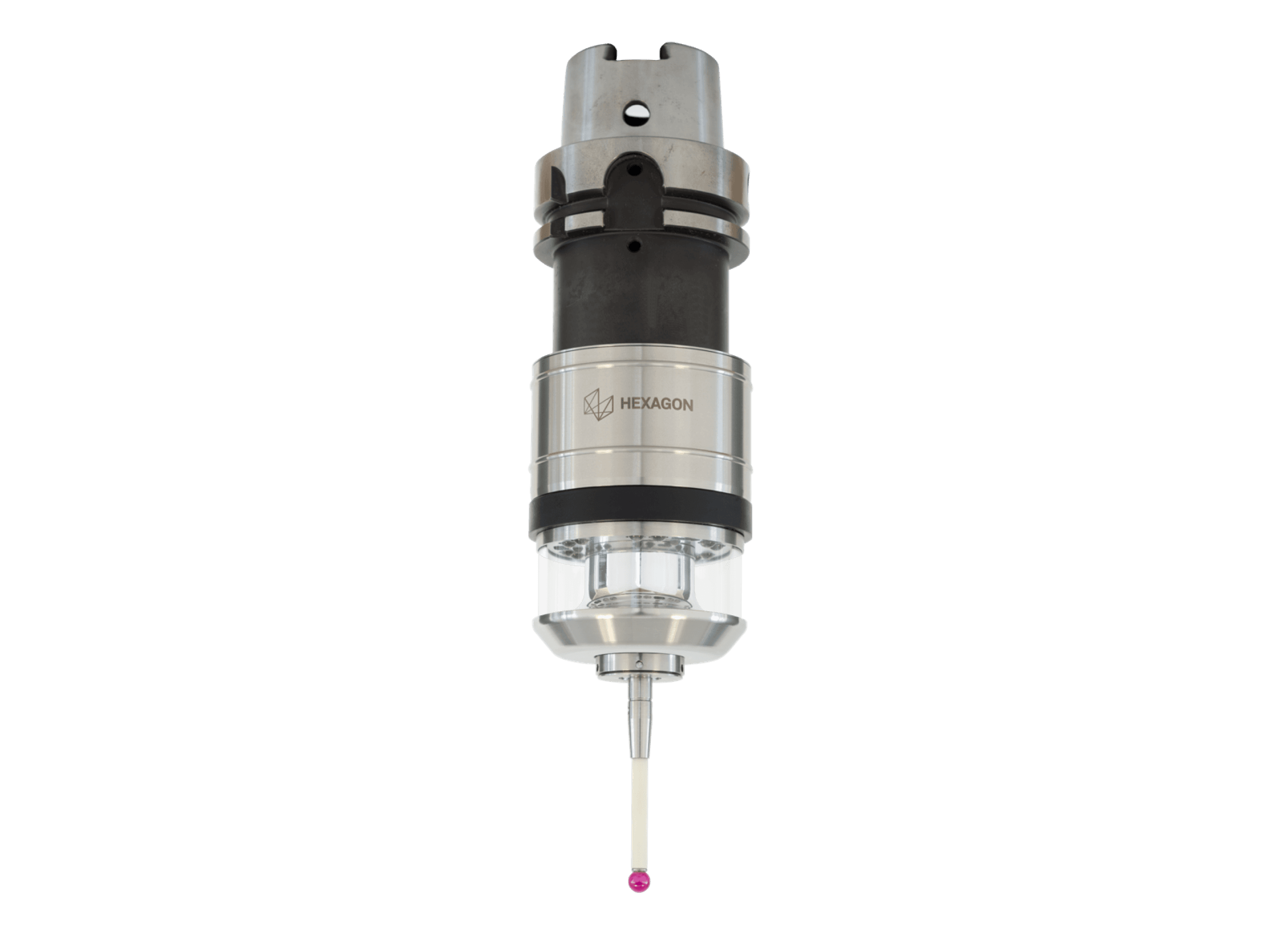

Infrared Probe m&h IRP25.50

Infrared touch probe of the newest generation

The new bidirectional probe m&h IRP 25.50 is characterized by its modular structure. Various measuring units, different extensions and cross-probes can be used. This makes it possible to optimally adjust the probe to future requirements and applications in the machine tool at any time. The development of further measuring units and sensors which can be used on the same system basis is planned for the future.

The m&h probes of the new generation allow to operate two IRP25.50 simultaneously with only one IRR91.50 receiver. For example, this is suitable for simultaneous measurements on both spindles of double-spindle machines.

Infrared touch probe of the newest generation

Training and Resources

Infrared Probe m&h IRP25.50 Specifications

Accuracy	Triggering force	Temperature range	Power supply
2 Sigma ≤ 1 μm with 50 mm stylus and 254 mm/min probing feed rate	PP41.00 – X/Y = 0,3 - 1,4 N; Z = 2,5 - 12,5 N MY21.00 – X/Y = 1 N; Z = 6 N	Operation: 10°- 50°C Storage: 5°- 70°C	1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh
Protection class	Signal transmission
IP68: EN60529	Infrared

Accuracy

Triggering force

Temperature range

Power supply

2 Sigma ≤ 1 μm with 50 mm stylus and 254 mm/min probing feed rate

PP41.00 – X/Y = 0,3 - 1,4 N; Z = 2,5 - 12,5 N

MY21.00 – X/Y = 1 N; Z = 6 N

Operation: 10°- 50°C

Storage: 5°- 70°C

1 x 9 V battery block, 6LR61

Lithium: 1200 mAh,

Alkaline: 550 mAh

Protection class

Signal transmission

IP68: EN60529

Infrared

Accuracy
2 Sigma ≤ 1 μm with 50 mm stylus and 254 mm/min probing feed rate
Triggering force
PP41.00 – X/Y = 0,3 - 1,4 N; Z = 2,5 - 12,5 N MY21.00 – X/Y = 1 N; Z = 6 N
Temperature range
Operation: 10°- 50°C Storage: 5°- 70°C
Power supply
1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh
Protection class
IP68: EN60529
Signal transmission
Infrared
