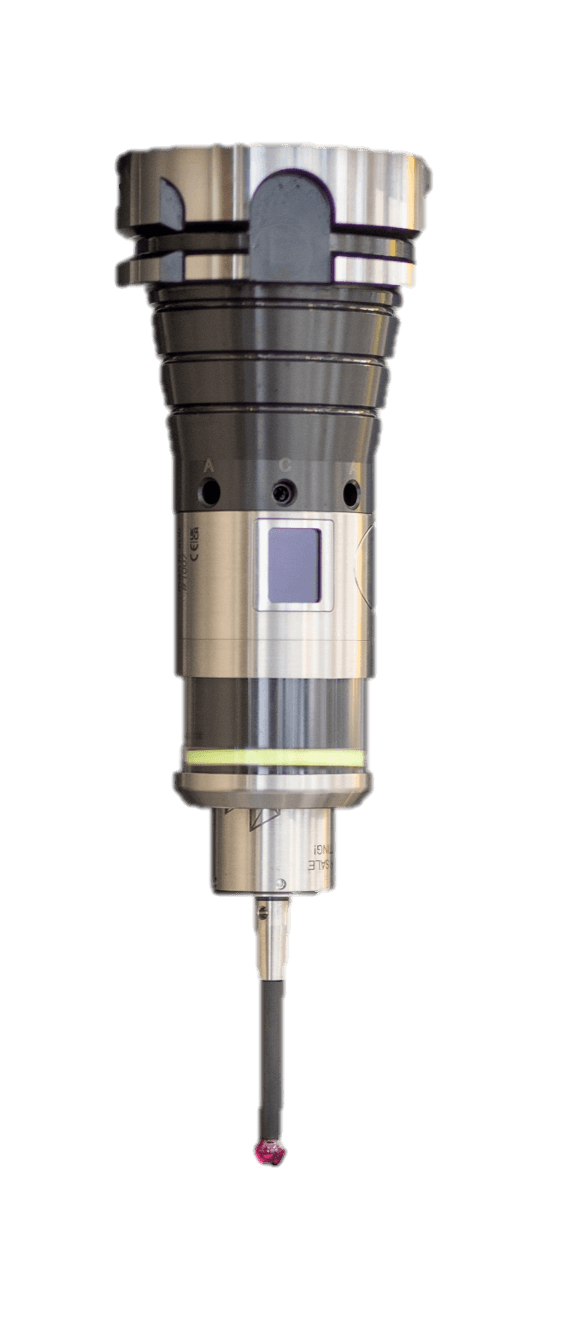

Radio probe m&h TP-R-400

Versatile and compact radio probe with unique handling

Despite its compact size, a wide range of different measuring units, diverse extensions and styli configurations can be used to maximize flexibility and efficiency. This means the m&h TP-R-400 can be optimally adapted to future requirements and applications on the machine tool.

The probe was designed for ideal use in a modern production environment. Equipped with an all-round illumination ring, unique handling and a display on the probe, configuration changes and status checks of the probe have never been easier. Additionally, equipped with a separate base plate, the TP-R-400 can even be converted into a tool-setter.

Training and Resources

Radio probe m&h TP-R-400 Specifications

Accuracy	Triggering force	Temperature range	Power supply
Max. 1μm (2 Sigma) with 50 mm Stylus at 254 mm/min	PP41.00 – XY = 0,3 - 1,4 N; Z = 2,5 - 12,5 N MY21.00 – XY = 1 N; Z = 6 N	Operation: 10° to 50°C Storage: -20° to 70°C	2x battery (3,6 V / ½AA)
Protection class	Signal transmission
IP68: EN60529	Radio-wave (up-to 18m)

Accuracy

Triggering force

Temperature range

Power supply

Max. 1μm (2 Sigma) with 50 mm Stylus at 254 mm/min

PP41.00 – XY = 0,3 - 1,4 N; Z = 2,5 - 12,5 N

MY21.00 – XY = 1 N; Z = 6 N

Operation: 10° to 50°C

Storage: -20° to 70°C

2x battery (3,6 V / ½AA)

Protection class

Signal transmission

IP68: EN60529

Radio-wave (up-to 18m)

Accuracy
Max. 1μm (2 Sigma) with 50 mm Stylus at 254 mm/min
Triggering force
PP41.00 – XY = 0,3 - 1,4 N; Z = 2,5 - 12,5 N MY21.00 – XY = 1 N; Z = 6 N
Temperature range
Operation: 10° to 50°C Storage: -20° to 70°C
Power supply
2x battery (3,6 V / ½AA)
Protection class
IP68: EN60529
Signal transmission
Radio-wave (up-to 18m)
