HP-S-X5 Scanning Probes

Ultra-precise, full 3D fixed scanning probe heads

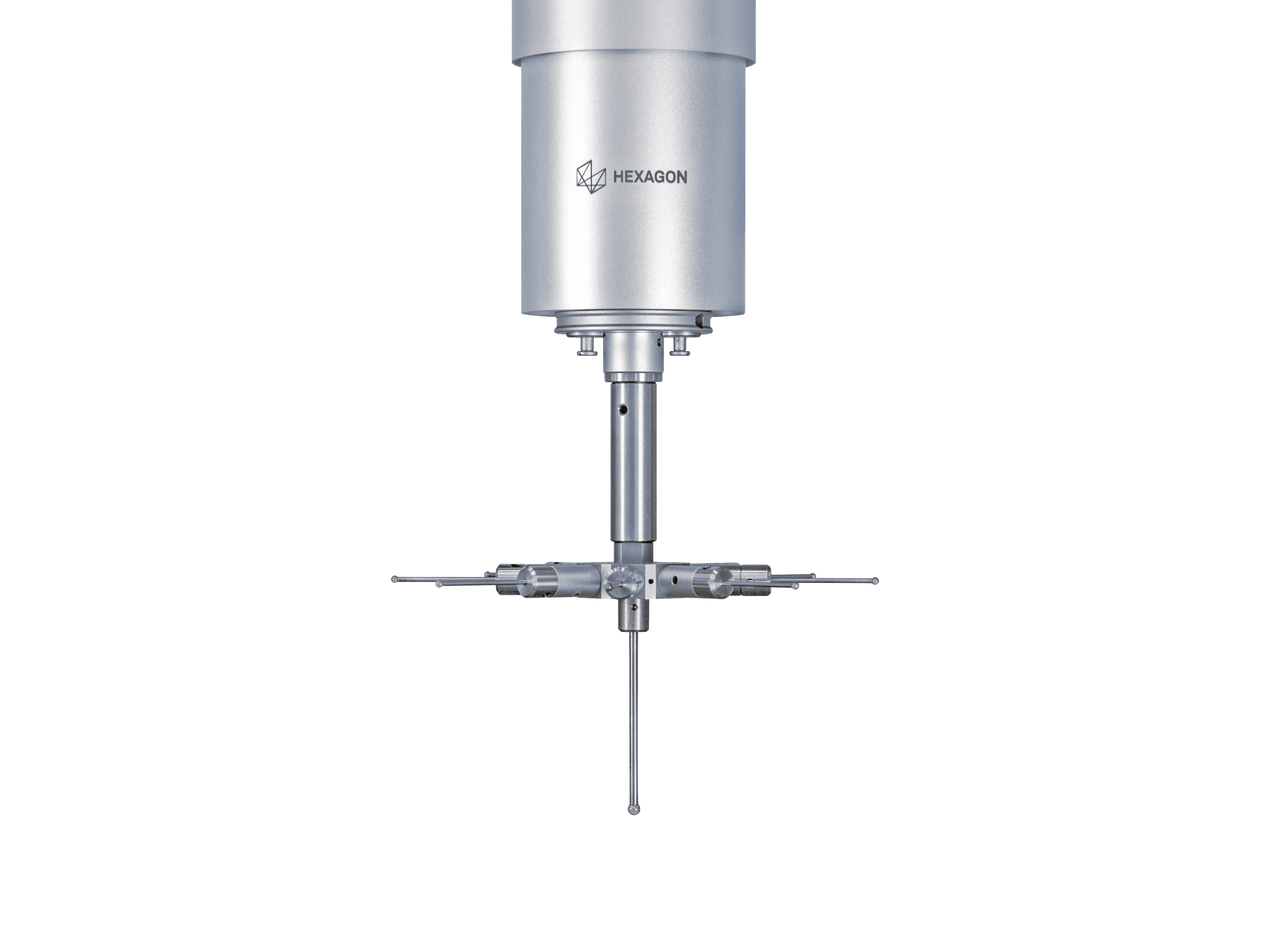

The HP-S-X5 and HP-S-X5 HD are heavy-duty analog scanning probes that offer high and repeatable accuracy, even with extra-long probe extensions and heavy styli clusters.

HP-S-X5 range scanning probes offer true 3D probing, making them ideal for inspecting parts like gears, rotors, and blades. On contact with the part, the probe automatically measures normally to the surface. Deflections are measured by high-resolution Linear Variable Differential Transducers (LVDT), allowing accurate compensation of the probe bend, whatever length of stylus is used

Ultra-precise, full 3D fixed scanning probe heads

The HP-S-X5 and HP-S-X5 HD are heavy-duty analog scanning probes that offer high and repeatable accuracy, even with extra-long probe extensions and heavy styli clusters.

Training and Resources

HP-S-X5 Scanning Probes Specifications

Probe type	Probe mounting	Stylus holder thread	Max. stylus length
Analogue	Center mounted / dovetail connector	M5	Up to 800mm
Max. stylus weight	Measurement range	Resolution	Linear stiffness
650g (incl. stylus clamping)	+/- 1mm in all axes	< 0.1 μm	5 N/mm

Probe type
Analogue
Probe mounting
Center mounted / dovetail connector
Stylus holder thread
M5
Max. stylus length
Up to 800mm
Max. stylus weight
650g (incl. stylus clamping)
Measurement range
+/- 1mm in all axes
Resolution
< 0.1 μm
Linear stiffness
5 N/mm
